shearing machine

The working effect of the hydraulic plate shears is closely related to its debugging and correct operation. Today we will introduce the debugging and correct operation steps of the hydraulic plate shears. Now, we first introduce the correct operation of the hydraulic plate shears to you: 1, start the machine for several idling cycles, ensure that under normal conditions, test shear different thickness of sheet, from thin to thick. Ensure users are familiar with machine performance. 2.The gap between different blades… Read More »What are the main points of concern in operating a hydraulic plate shears?

After shearing, the Shearing machine 10x6000 should ensure the straightness and parallelism of the shearing surface of the shearing plate, and minimize the distortion of the plate, so as to obtain high-quality workpieces. The upper blade of the shearing machine is fixed on the tool rest, and the lower blade is fixed on the workbench. A supporting ball is installed on the work table so that the sheet material will not be scratched when sliding on it. The rear stopper is… Read More »Shearing machine 10x6000 mechanical rear file material structure

Maintenance measures of plate shearing machine: The plate shearing machine is operated in strict accordance with the operating rules. Add lubricating oil at regular time, fixed point and quantitative according to the requirements of the lubrication chart before starting the plate shearing machine each time. The oil should be clean and without precipitation. The machine tool of the plate shearing machine must always be kept clean and the unpainted part of the rust proof grease. The lubricating oil in the… Read More »What should I do to maintain the shearing machine?

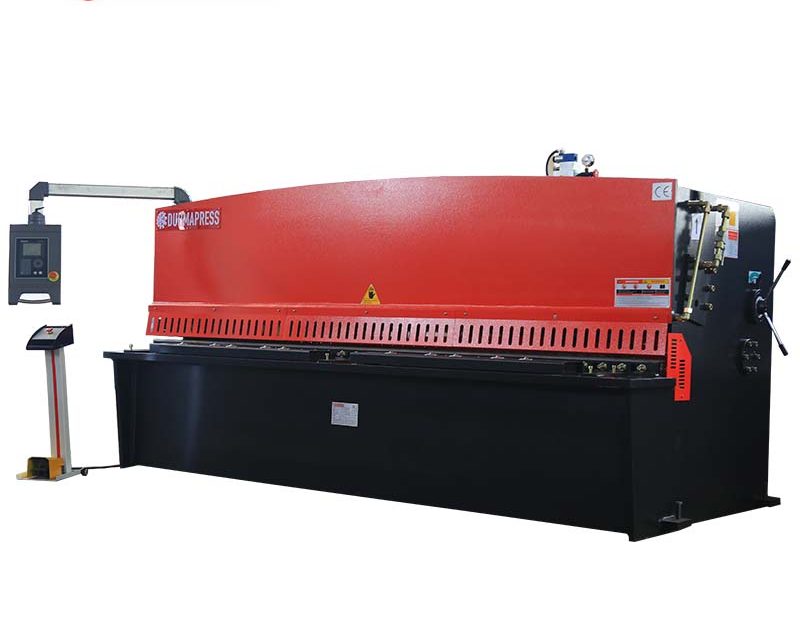

The QC12Y-6×6000 plate shearing machine features an all-steel welding structure, including the wall panel, worktable, and tool rest body.

Cautions for cutting edge of plate shearing machine 1, the plate shearing machine should be responsible for the use and custody of a special person. The operator must be familiar with the structure and performance of the machine tool. 2. It is strictly prohibited to use the plate shearing machine over load. No shear hardening steel, hard steel, high speed steel, alloy steel, castings and non-metallic materials. 3. The blade edge should be kept sharp, dull or damaged, and should be polished… Read More »Cautions for cutting edge of plate shearing machine

I. QC12Y - 6 x 6000 plate shears Technology and process 1. This machine is a new generation of hydraulic plate shears. Adopt advanced hydraulic integrated valve block. Compact structure, reduce pipeline connection, improve the reliability and easy maintainability of the system. 2, the series cylinder makes the machine tool in the shear, the cylinder synchronization, shearing Angle will not change. 3. The mounting surface of the blade on the tool rest is a spiral surface, which ensures the uniformity… Read More »QC12Y - 6 x 6000 plate shears Technology and process

What are the maintenance procedures of the plate shearing machine? Specifically speaking, mainly includes the following content, as: minor repair, repair, overhaul, test and acceptance, the following are starting from these four aspects, to introduce the plate shears maintenance procedures in detail, so that the reader will have reference in the future. A, minor repairs 1. Disassemble and inspect parts that are seriously worn. 2. Remove dirt, accumulate material, adjust clearance and relative position, replace or repair parts that can't… Read More »What are the maintenance procedures of the plate shearing machine?

Adjustment of clearance of sluice hydraulic guillotine shearing machine 1. Remove the blade and clean it piece by piece. 2. The blade can be used on all sides, select the good side and install it tightly.And check the horizontal and vertical blade flatness of the two directions. 3. Remove the upper blade and clean it piece by piece.Similarly, the blade can be used on all sides, choose the good side and install it tightly.And check the horizontal and vertical blade… Read More »How to adjust the gap of the gate hydraulic guillotine shearing machine?
