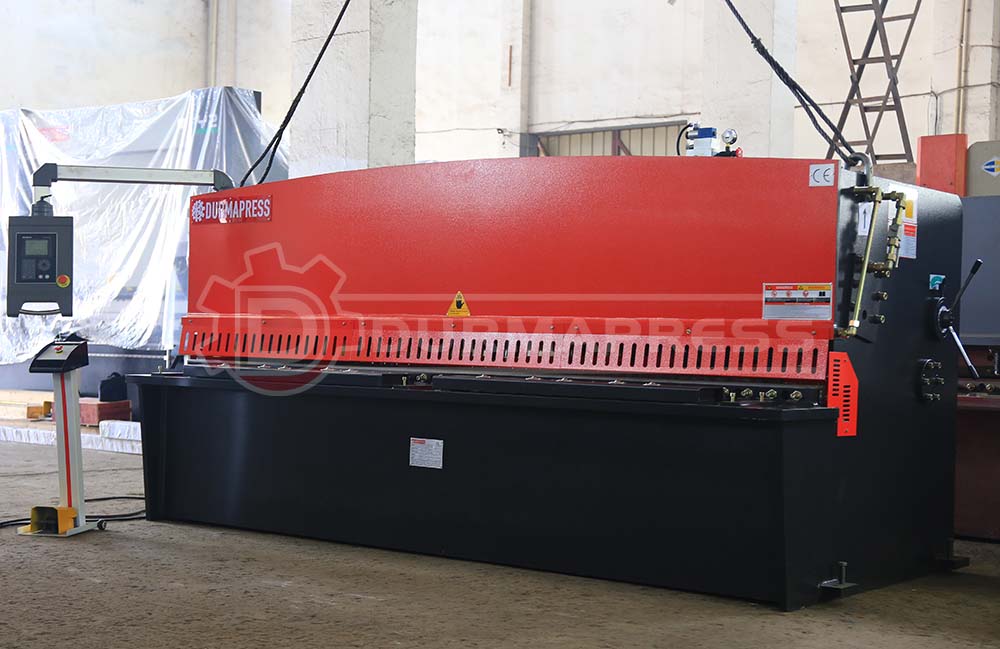

Shearing machine 10x6000 mechanical rear file material structure

After shearing, the Shearing machine 10x6000 should ensure the straightness and parallelism of the shearing surface of the shearing plate,

and minimize the distortion of the plate, so as to obtain high-quality workpieces.

The upper blade of the shearing machine is fixed on the tool rest, and the lower blade is fixed on the workbench.

A supporting ball is installed on the work table so that the sheet material will not be scratched when sliding on it.

The rear stopper is used for sheet positioning and the position is adjusted by the motor.

The press cylinder is used to press the sheet material to prevent it from moving during shearing.

A guardrail is a safety device to prevent accidents at work. Return generally by nitrogen, fast speed, small impact.

The rear block of the plate shearing machine is an important component to improve the efficiency of the plate shearing quickly and

ensure the accuracy of the plate shearing.

It is the core structure of the Shearing machine 10x6000 and must be accurate.

1.The rear block of the plate shearing machine is installed on the upper tool rest.

The adjustment of the rear stopper is driven by a 0.55KW motor and driven by a lead screw after being reduced by a gear.

Press the adjustment button

"+" (or "-"), can achieve the baffle plate forward (backward) adjustment,

in the motor adjustment can not reach the required adjustment value.

2, plate shearing machine hand wheel adjustment.
