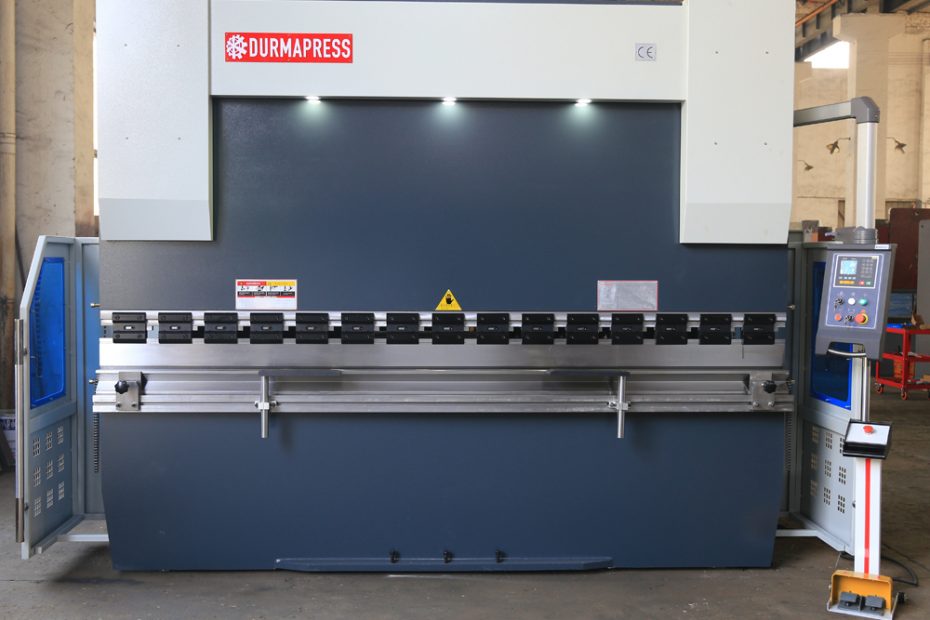

WC67Y-40T/2500 hydraulic bending machine structure characteristics:
Slider part: hydraulic transmission, slider part is composed of slider, cylinder and mechanical stopper fine tuning structure. The left and right cylinder is fixed on the frame, the piston (rod) drives the slider up and down through the hydraulic pressure, and the mechanical block is controlled by the numerical control system to adjust the numerical value;
Worktable part: by the button box operation, the motor drive the block frame move before and after, and by the numerical control system to control the distance of movement, its very small reading is 0.01 mm (before and after the position have travel switch limit);
Synchronization system: the machine is composed of torsional shaft, swing arm, joint bearing and other mechanical synchronization mechanism, simple structure, stable and reliable performance, high synchronization accuracy. The mechanical block is adjusted by the motor, and the numerical control system controls the value.
Pending mechanism: the material is driven by motor, and the two screw rods move synchronously through chain operation. The size of the material is controlled by numerical control system.
WC67Y-40T/2500 hydraulic bending machine structure characteristics:
1. Adopt all-steel welded structure, with sufficient strength and rigidity;
2. Hydraulic up drive, the cylinder at both ends of the machine tool is arranged on the slider, directly drive the sliding work;
3. Slider synchronization mechanism adopts torsional shaft forced synchronization;
4, Adopt mechanical block structure, stable and reliable;
5, Slider stroke motor fast adjustment, manual fine tuning, counter display;
6. Skew wedge deflection compensation mechanism to ensure higher bending accuracy.
