Numerical control hydraulic plate bending machine in the application of small skills

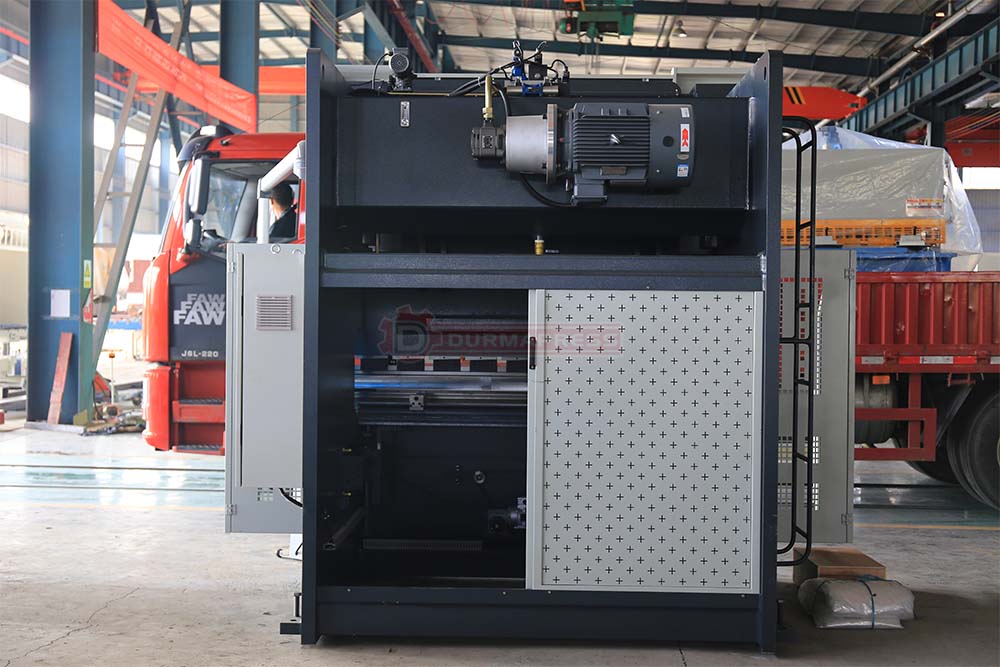

CNC bending machine whole steel plate welding, the use of tempering vibration to eliminate stress, good stability of the frame; Machine tool shot peening derusting;

The frame is formed by one clamping process of imported three-dimensional machining center to ensure the parallelism and perpendicularity of each mounting surface.

Numerical control hydraulic plate bending machine computer through two sets of servo bidirectional pump system to control the flow and pressure of Y1 and Y2 cylinders,

respectively, the oil in the upper chamber of the cylinder is directly driven into the lower chamber of the cylinder by the oil pump,

to achieve the upper mold lifting, the oil in the lower chamber of the cylinder is directly driven into the upper chamber of the cylinder by the oil pump reversal, to achieve the sheet metal bending.

The machine tool upper die left and right synchronization is two sets of servo bidirectional pump respectively control.

The machine tool is not only high precision, energy saving, low noise, and more stable and reliable, less oil,

conducive to the manufacture of large stroke ultra-high speed bending machine.

Hydraulic plate bending machine safety operation procedures, its main content is:

(1) The relevant operators should undergo strict training and assessment,

and only after passing the assessment can they work, otherwise they cannot.

(2) The machine and equipment should be kept clean and tidy, its lubrication should be maintained well,

the oil quantity in the tank should be checked regularly, and the oil quantity should be added in time.

(3) the bending force of the workpiece should not be greater than the nominal pressure of the equipment,

and the die should be selected properly, and the size should be moderate, and there should be no deviation.

(4) to bend the plate, should be placed in the middle of the bending machine to carry out,

can not make the bending machine unilateral load, so as not to affect the bending effect of the workpiece, and the bending accuracy.
