WC67Y-40/2500 hydraulic bending machine is a kind of widely used plate bending equipment,with a very simple general mold for plate bending a variety of angles of the straight line, simple operation, good versatility, low mold cost, convenient replacement, the machine itself only one basic movement -- up and down reciprocating straight line movement.

Two, the main structure and working principle of WC67Y-40/2500 hydraulic bending machine:

1. Main structure of the machine The main parts of the machine are stitched together with steel plates, with high strength and good rigidity.

(1) The frame is composed of left and right wall panels, oil tanks, pallets, worktables, supports, etc., into a frame-shaped frame. The working bench is under the left and right wall panels, and the oil tank is located at the upper part of the machine.

(2) slider slider is made of the whole steel plate, and the piston rod in the left and right oil cylinder is connected together, two oil cylinders are fixed on the left and right wall panels,through the hydraulic drive piston rod to drive the slide up and down action.

(3) The hydraulic system uses the special hydraulic valve of the bending machine.

(4) Front supporting frame, rear stopper. The front bracket is manually adjusted. The positioning size of rear stopper is controlled by computer with high positioning accuracy.

(5) The mold is made of 70# steel or alloy steel through forging, heat treatment, milling, grinding and other processing. The upper die adopts a variety of short die splicing or the overall upper die, which has the characteristics of high precision, good interchangeability and easy assembly and disassembly.

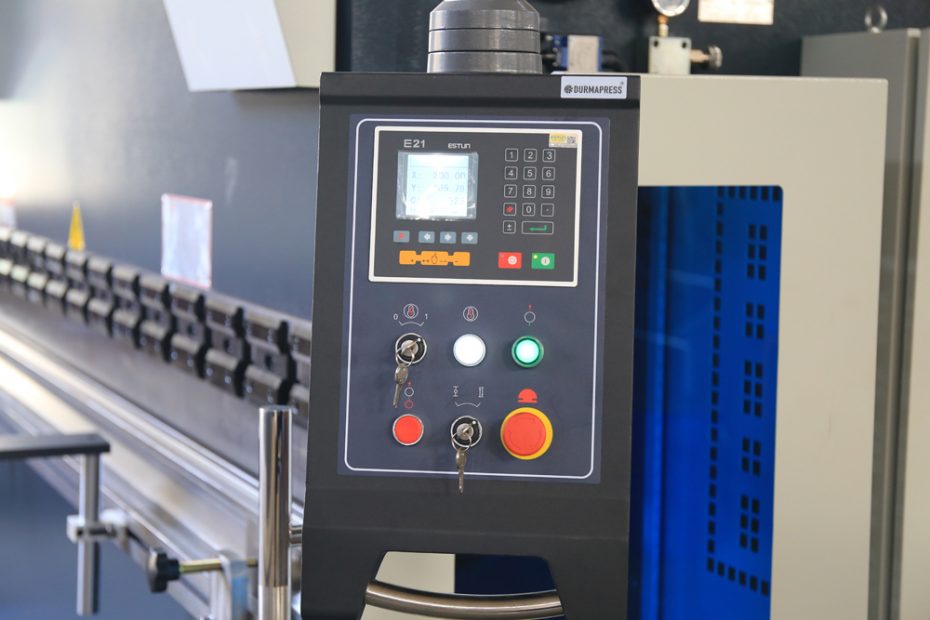

(6) electrical electrical box is installed with a variety of operation buttons.
