Leading Press Brake Supplier in China
DURMAPRESS is the leading professional manufacturer of press brakes in China. Our extensive range includes the WC67K NC Press Brake Torsion Bar, WE67K CNC Electric-Hydraulic Press Brake, MB8 CNC Genius Press Brake, as well as the most developed Robotic Press Brake and Tandem Press Brake, among others. Our sheet metal press brakes are designed with precision to cater to all your production needs, while taking into consideration different budgets.
Our brand boasts rich experience in designing various types of prensa plegadora tooling for end-user customer jobs. With our expert team, we can design a custom solution for you that fits your needs and requirements. Contact us today for an instant quote, and let us help you take your metal fabrication to the next level.

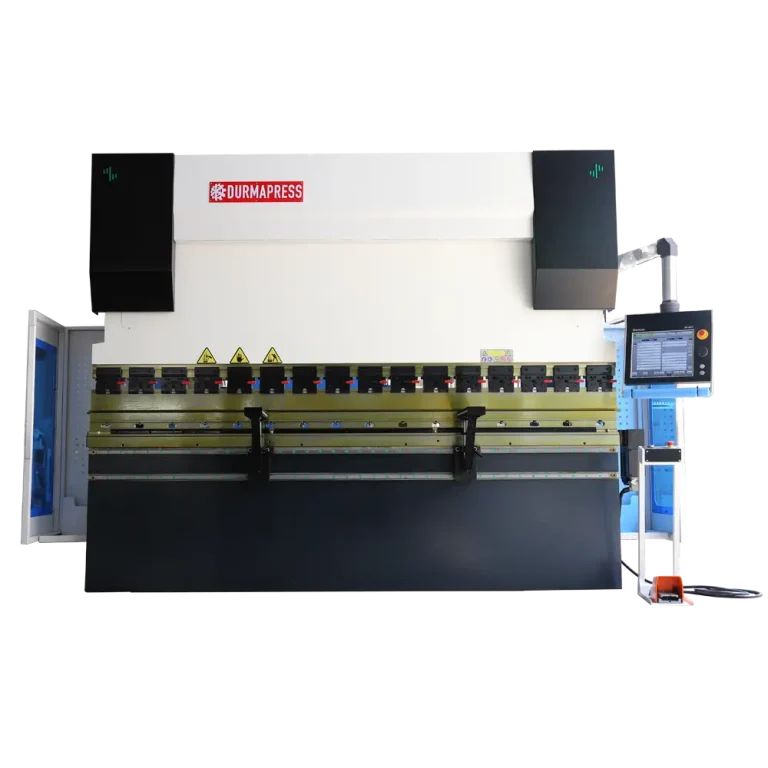

Torsion Bar NC Press Brake
Torsion Bar CNC Servo Press Brake
The high advanced CNC solution.
The Electric-Hydra CNC solution.
The Tendem CNC Press Brake -Two Sets Combined
Press Brake Video
DURMAPRESS®Different Series Mild Steel Press Brakes with CNC Controller Working Video Testing Before Delivery, Welcome Contact Us!
Upgrade Solutions
If you require additional accessories or services to upgrade your press brakes, please follow the link below to learn more.
What is Press Brake ?
The Press Brakes used to press the plates into various shapes of parts and Different Bending Angle according to the needs of the process.The main frame consists of left and right columns, working table and crossbeam, left and right two synchronized hydraulic cylinders are fixed on the columns, the slider is connected to the piston of the hydraulic cylinders and moves up and down along the guide rail fixed on the columns, the lower die is fixed on the working table, the upper die is installed at the lower end of the slider, the hydraulic system provides power, the electrical system gives instructions, under the action of the synchronized hydraulic cylinders, the upper beam drives the Upper Punch down and the lower die closes to achieve the different bending angle of the sheet metal.
Left and right column, Working table and slider (hereinafter referred to as the three major parts) is the key parts of the Press Brakes, the sum of the weight of the three major parts accounted for 70% to 80% of the total weight of a Press Brakes . Its strength and rigidity directly determine the machine's operating accuracy, lifespan,Most importangt the accuracy of the workpiece of new products.
Classification of Press Brake
Press Brake are divided into Manual Press Brakes, Hydraulic Press Brake and CNC Press Brake machines.
Hydraulic Press Brakes Machines can be divided Into Tosion Bar Hydraulic Press Brake And Hydraulic-Synchronisation CNC Press Brake according to By synchronisation method. Hydraulic Press Brakes can be divided into: the upper moving type, the lower moving type according to the movement 。
Material
Thickness
Longitud
Strength
There is some Basic characteristics to calculate the bending high tonnage , then detemine the press brakes model .Before You buy the Hydraulic Press Brakes , you need some Sheet Metal details need to you at least .
After these characteristics have been determined, We can calculate the high tonnage required for the bending operation.
Otherwise , We also want to know if you need NC Press Brake or CNC Press Brake Machine .About the Difference , Check Below !
What are the other Selection Criteria for Choosing a Press Brake?
There is some Important characteristics when you are Choosing a Press Brakes
What the Difference between NC And CNC Press Brake ?
How many Press Brake Controllers are there ?
TP10 , TP15, E22 NC Controller can be optional , Made in China which is not popular
There are three Major Controller in world market as below :
With the best press brake controller, you can produce more accurate sheet metal products and consistent parts, manage bend speeds, angle measurement and control as many other aspects of press brake production with total ease in near future
How to Use Press Brake ?
What Is Press Brake Crowning system and difference between them ?
The hydraulic automatic deflection Crowning mechanism of the workbench is composed of a group of oil cylinders installed in the workbench. The position and size of each Crowning oil cylinder are designed according to the deflection ram of the ram and the workbench finite element analysis. The hydraulic Crowning realizes the bulge Crowning of the neutral version through the relative displacement between the front, middle and back three verticalplates. The principle is that the bulge is realized through the elastic deformation of the steel plate itself, so the Crowning amount can be adjusted within the elastic range of the workbench.
What is Hydraulic Crowning ?
Press Brakes have two hydraulic cylinders at two sides of the press brake frame ,The three-auxiliary hydraulic cylinder in the middle of the machine is called Hydraulic Crowning .When the upper beam is down, the auxiliary cylinder is filled with liquid oil and goes down ward.During the bending process, hydraulic oil inlet into the auxiliary cylinder, so that the upper beam generate downward deflection for compensation.Install the auxiliary hydraulic cylinder in the lower part of the worktable.
During the bending process, it generates an upward force on the worktable, which forms the automatic crowning system.
The pressure compensation device is composed of several small oil cylinders,comprising an oil cylinder, a motherboard, an auxiliary plate and a pin shaft, and a compensating cylinder is placed on the worktable.The pressure compensation system is formed with a proportional relief valve.
What is Mechanical Crownings ?
Mechanical crowning is a kind of new deflection compensation method, whichgenerally uses a triangular oblique wedge structure.The principle is that the two-triangle wedge block with a angles, the upper wedgemoving is fixed at back gauge X-direction and can only move in Y-direction.
The CNC Controller calculates the required deflection amount according to the load force when the workpiece is bent (this force will cause deflection deformation of the ram and the workbench vertical plate), and automatically controls the relative movement amount of the convex wedge, thus effectively compensating the deflection deformation caused bythe ram and the workbench vertical plate .A set of wedges form a curve consistent with the actual deflection in the length direction of the workbench, so that the gap between the upper and lower dies is consistent during bending.
How to Choose Press Brake Toolings ?
El diseño de las herramientas de plegado depende de la pieza de trabajo del cliente, se puede dividir en selección de punzón y selección de matriz. Las reglas son las siguientes:
Selección de punzonado :
Selección de troqueles:
El cliente puede utilizar la regla normal 8×2 para guardar el burget.
Ya has determinado el troquel más pequeño y el más grande que necesitas: 2 mm y 6 mm. Para rellenar lo que necesita en medio, empiece con el tamaño V más pequeño y duplique su tamaño. En este caso, obtendrá una matriz de 16 mm (2 × 8 = 4). Molde Multi-V 32mm , 48mm .
Si su pieza no necesita un reborde corto, un desplazamiento estrecho o un radio ajustado, ¿para qué complicarse? Siga estas tres sencillas reglas y mejorará el rendimiento angular, acortará el tiempo de preparación y reducirá los costes operativos de la herramienta.
También Durmapress Ingeniero puede diseñar las herramientas especiales de acuerdo a la solicitud de productos de los clientes, por lo que sólo en contacto con nosotros y enviar sus productos dibujos está bien.
What is Press Brake Safety
It can divided to Laser Safety and Light Safety .
-The Press Brake Laser Sentry system is a Bending-edge safety device, a Presence Sensing Device (PSD) featuring laser guides that ensure the safety of a press brake operator while employing the precision of lasers directly surrounding the die. If a foreign object is detected, the laser technology will immediately retract the die and stop the Press Brake Machine.
-The Press Brake Light Safety consists of a transmitter, a receiver, a mounting bracket and a controller .There is no impact on the production of the Press Brake machine and if a worker's finger enters the protected area, it will block the beam and the Press Brake machine will then stop immediately, effectively preventing finger crushing accidents.
Press Brake Laser Safety Protection System Classification :
Press Brake Application
Press Brake Machine can widely used in steel sheet metal processing industry . Mostly we can used in the following industry as below :
Decorating Industry
CNC Press Brakes can be used for the production of stainless steel sheets, doors and windows, as well as for the decoration of special places.
Electrical Industry
The Steel plates can be cutted into different required sizes by shearing machines and then re-processed by Hydraulic Press Brake Machine, such as computer cases, electrical cabinets, refrigerator and air conditioning housings, etc which are all made in this way.
Kitchen Restaurants Industry
Various varieties and specifications of Stainless Steel kitchenware are bending to different angles and shapes by the Hydraulic CNC Press Brake , then in secondary processing, such as welding and etc.
Wind Communication Industry
Press Brake can bend the wind power poles, light poles on the road, communication tower poles, traffic light poles, traffic signal poles, monitoring poles, etc. It usually need the heavy duty Press Brake , 6meters and 8meters Tandem Press Brake to finished such products .
Automotive & Marine Industry
Large CNC hydraulic press brake are used to bending body of boat, It also need combined the heavy duty hydraulic guillotine shearing machine .Bending Upper Punch and Down die should be customized according to Boat body drawings .
Aerospace Industry
Arospace industry should use high precision CNC Press Brake machine, accurate and efficient. Because The final products is the main parts which must be in the tolerence accepted ranged .
Conclusion :
From non-ferrous metals, ferrous metal plates, automotive ships, electrical power, decoration, kitchen plates, chassis cabinets, lift cabinet door shear, bending processing; large to the aerospace field, CNC Press Brake Machine's role importance are increasingly . In short, the development of CNC Press Brake is very promising,The development prospects of CNC Press Brake will have a very broad space .
