It is necessary for operators to understand the structure and performance of CNC plate shearing machine before working

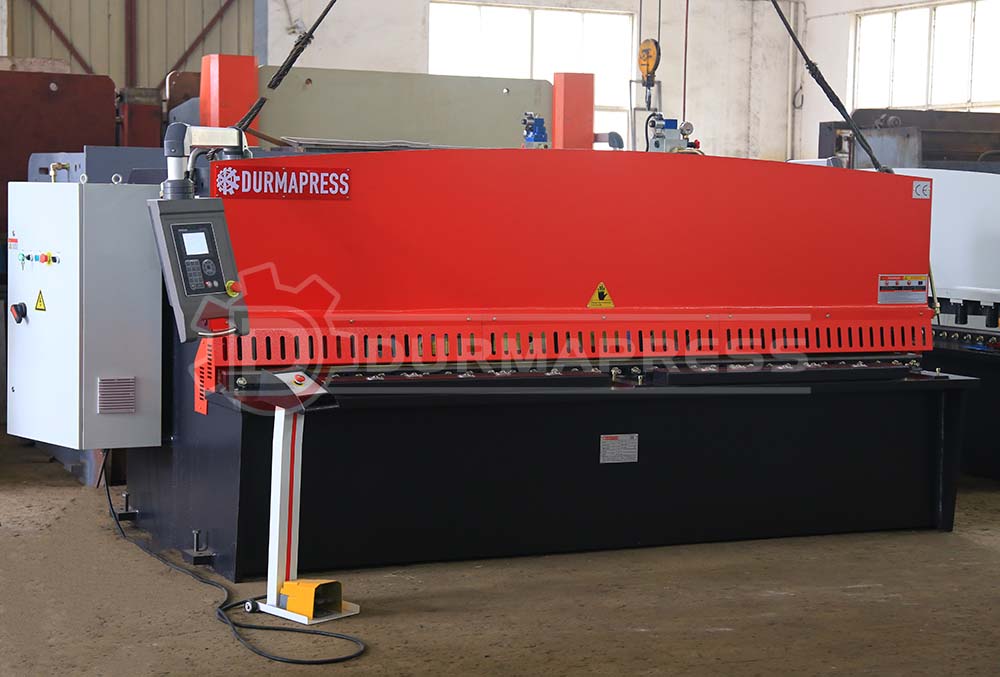

CNC shearing machine frame adopts steel structure, left and right vertical plate, working table and pressure plate welded into a whole structure,
after welding by tempering to eliminate its internal stress, so the overall rigidity is good, high stability.
The hydraulic system is installed on the end face of the oil tank, and the oil tank is fixed on the frame beam, so it is easy to clean and assemble.
The system pressure is supplied by the oil pump, and the valves are under the control of the electric hydraulic system,
which can realize the downward shearing sequence action of the pressing foot and the tool rest and other action specifications.
The tool rest is made of steel structure. Under the action of the thrust of the cylinders on both sides,
it can swing around the fixed pin shaft to complete the shearing action without the guide rail system.
When the end of shearing, the return cylinder action, tool carrier quick automatic return.
It has a mechanism to quickly adjust the blade clearance, and the scale value is displayed on the dial.
CNC shearing machine operators need to be familiar with the main structure, performance and use of the shearing machine:
(1) Before work, we should be responsible for checking whether all parts of the plate shearing machine are normal,
whether the electrical equipment is complete, and whether the lubrication system is smooth; Remove the table and its surrounding placed tools, measuring tools and other debris and waste corners.
