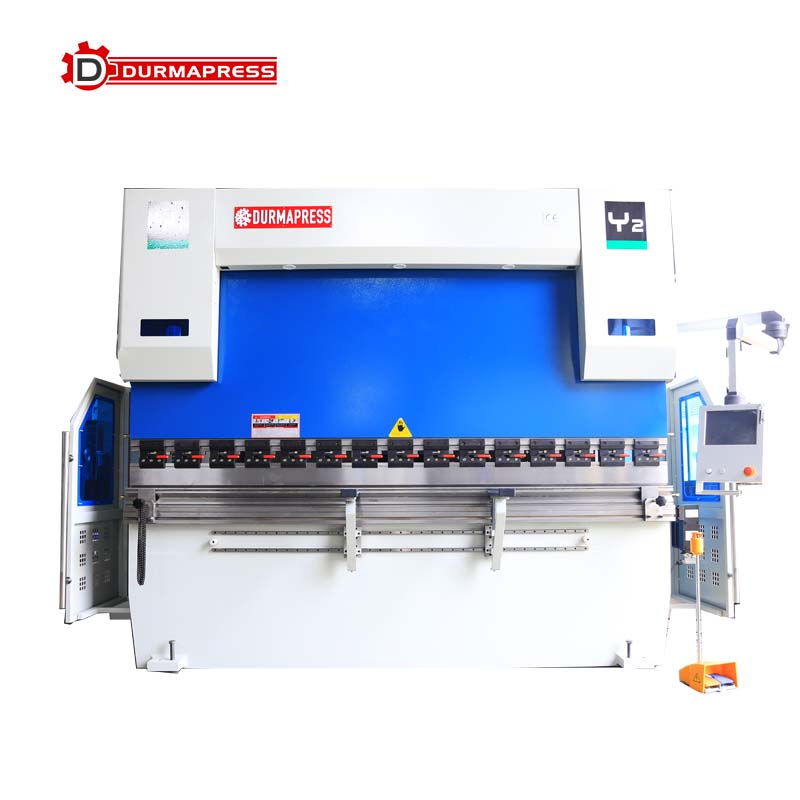

Bending machine special CNC system CNC-600, through the servo motor (can also be equipped with frequency converter and encoder control), to control the Y axis and X axis (that is, the positioning of the height of the baffle and the movement of the rear baffle before and after).
1. Choose 320* 128-LCD to display high brightness blue display. Full Chinese large font display;
2. Convenient switching between Chinese and English;
3. Angle programming (5°-179°);
4. Mold parameter setting;
5. Angle (Y axis) correction function;
6. Intelligent error reporting system, self-diagnosis function, fault display function;
7. With one-way positioning function to eliminate the gap;
8. With power off protection function, to protect parameters and position values not lost;
9. Man-machine dialog interface: the human-machine dialog interface of CNC system makes the system operation and data input simple and easy to learn;
10. Automatically calculate the position of the block, and can continuously bend the workpiece of different angles and lengths;
11. Display the present and target positions of X axis and Y axis;
12. Memory capacity: 99 workpieces, 30 worksteps for each work piece;
13. Manual, semi-automatic and automatic mode;
14. The rear stopper device has the function of automatic recoiling and delayed action;
15. Use three special keys or passwords to protect the workpiece, mold and parameter data respectively;
16. The latest modular structure, flexible combination of multi-axis system;
17. Waterproof keyboard with large keys;
18. Operation warning system of full function diagnostic program, help function to correct misoperation in time.
